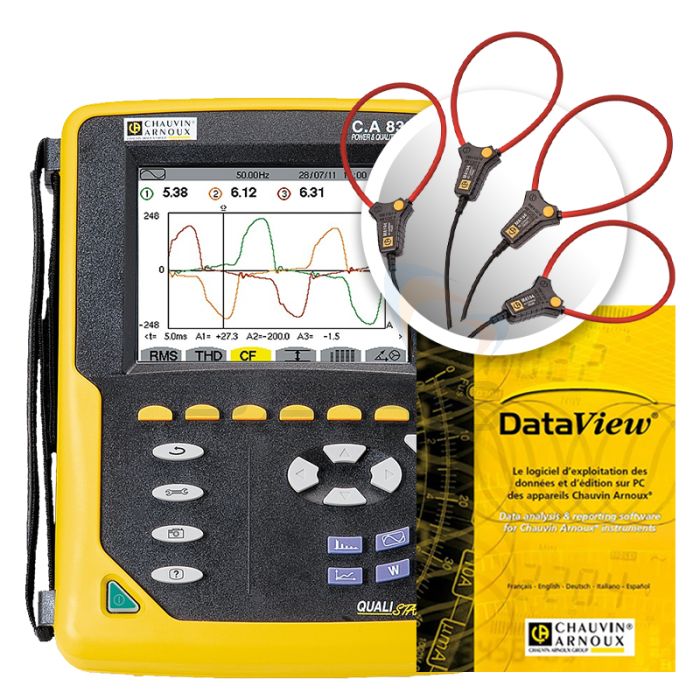

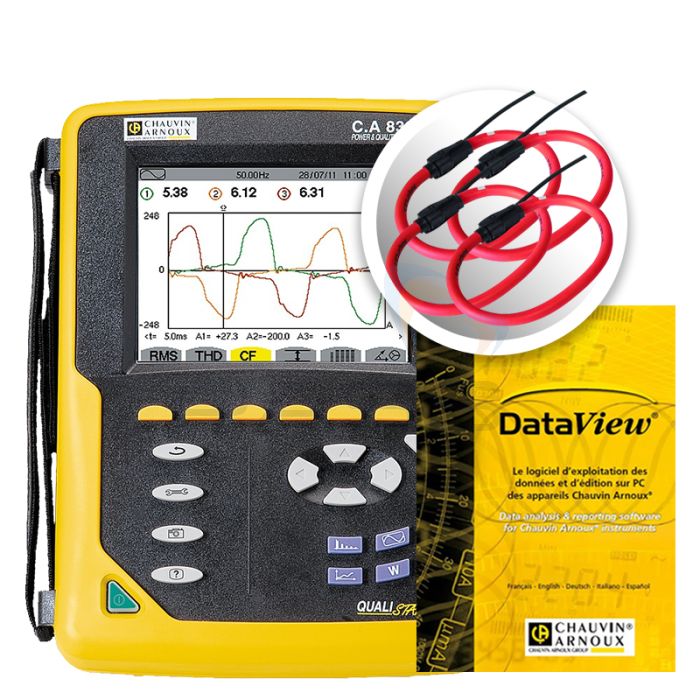

Available with a choice of 3x MA194-350 or 3x A193-450 Flexible Clamps, the Chauvin Arnoux CA8331 Qualistar+ Power Analyser Kits offer a significant discount compared to purchasing all the included items separately. Please see the ‘What’s Included?’ section for further details.

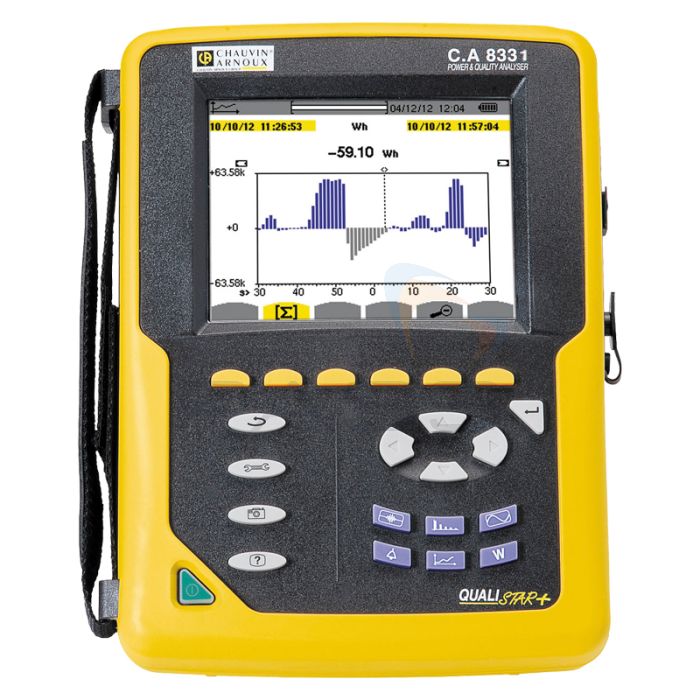

Use the Chauvin Arnoux CA8331 Qualistar+ Power Analyser, a comprehensive yet simple-to-use power quality tester, to carry out diagnostics on even the most complex electrical circuits. Equipped with four voltage channels and three current channels, the Chauvin Arnoux CA8331 Qualistar+ Power Analyser can monitor multiple parameters simultaneously. It has the capacity to measure:
Data is displayed on the high-contrast colour screen in easy-to-read graphs and waveforms. The Chauvin Arnoux CA8331 Qualistar+ Power Analyser also includes a MIN/MAX function for tracking the highest and lowest values detected.
Optimised for practicality, the Chauvin Arnoux CA8331 Qualistar+ Power Analyser features a built-in stand which enables hands-free usage; a USB interface for communication with a PC/laptop; and rechargeable batteries.
For more information about the Chauvin Arnoux CA8331 Qualistar+ Power Analyser, please click here.
| SKU | What's Included? |
Approximate Saving (Compared to Buying All the Included Products Separately) |
| CA8331-A193 |
|
£752 |
| CA8331-MA194 |
|
£881 |
| Model: | CA 8331 | C.A 8333 | C.A 8336 | C.A 8435 |
| Number of Channels | 3U/ 4I | 4U/4I | ||
| Number of Inputs | 4V/3I | 5V/4I | ||
| Voltage (TRMS AC + DC) | 2V to 1000V | |||
| Voltage Ratio | up to 500kV | |||
| Current (TRMS AC+DC) (Range dependant on clamp used - sold separately) |
||||
| MN93 Clamps | MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC | |||
| C193 Clamp | 1A to 1000A AC | |||
| AmpFLEX or MA193 Clamps | 100mA to 10000A AC | 30A to 6500A AC | ||
| PAC93 | 1A to 1300A AC/DC | |||
| E3N | 50mA to 100A AC/DC | |||
| Current Ratio | Up to 60kA | |||
| Frequency | 40Hz to 69Hz | |||
| Power Values | W, VA, var, VAD, PF, DPF, cos φ, tan φ | |||
| Energy Values | Wh, varh, VAh, VADh | |||
| Harmonics | Yes | |||
| THD | Yes, orders 0 to 50, phase | |||
| Expert Mode | - | Yes | ||
| Transients | - | 50 | 210 | |
| Flicker (Pst & Plt) | Yes | |||
| Inrush Mode | - | Yes on 4 periods | Yes > 10 minutes | |
| Unbalance | Yes | |||
| Recording MIN/MAX | Yes | |||
| of a selection of parameters at the max sampling rate | 4 hours to 2 weeks | Few days to several weeks | 2 weeks to several years | |
| Alarms | - | 4000 of 10 different types | 10000 of 40 different types | |
| Peak | Yes | |||
| Vectorial Representation | Automatic | |||
| Display | Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm | |||
| Capture of Screens and Curves | 12 | 50 | ||
| Electrical Safety | IEC 61010 1000V, CAT III / 600V CAT IV | |||
| Protection | IP53 / IK08 | IP67 | ||
| Languages | More than 27 | |||
| Communication Interface | USB | |||
| Battery Life | Up to 13 Hours | |||
| Power Supply | 9.6V NiMH rechargeable battery or external mains charger | |||
| Dimensions | 240 x 180 x 55mm | 270 x 250 x 180mm | ||
| Weight | 1.9kg | 3.7kg | ||
